产品信息
|
|
型号
|
JGX-1F
|
|

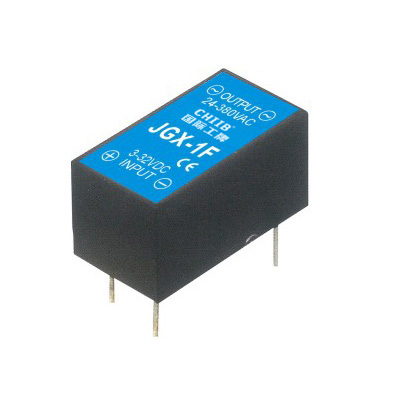

产品图片
|
|
|

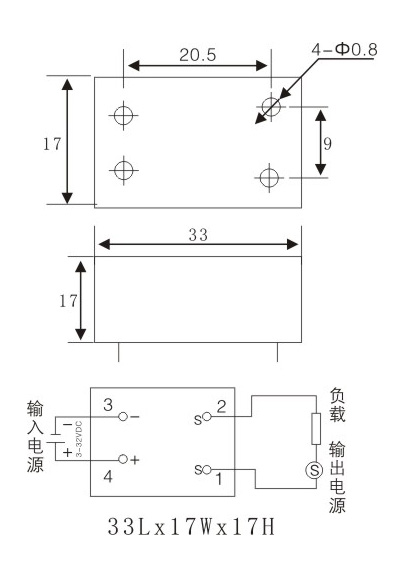

尺寸
|
|
|
负载电流Load Current
|
1A,3A,5A
|
|
负载电压Load Voltage
|
24-380VAC
|
|
控制电压Control Voltage
|
3-32VDC
|
|
控制电流Control Current
|
DC4-12mA
|
|
通态压降On Voltage
|
≤1.5V
|
|
通态漏电流 Off Leakage Current
|
≤1.5mA
|
|
断态时间On-off Time
|
≤10ms
|
|
介质耐压Dielectric Strength
|
1500VAC
|
|
绝缘电阻Insulation Resistance
|
500MΩ/500VDC
|
|
环境温度Ambient Temperature
|
-25℃~+70℃
|
|
安置方式：Mounting Methods
|
印刷版式PCB
|
|
工作指示The Work Instructions
|
|
|
重量Weight
|
18g
|
|
