产品信息
|
|
型号
|
JGX-G-48200DA(AA)
|
|

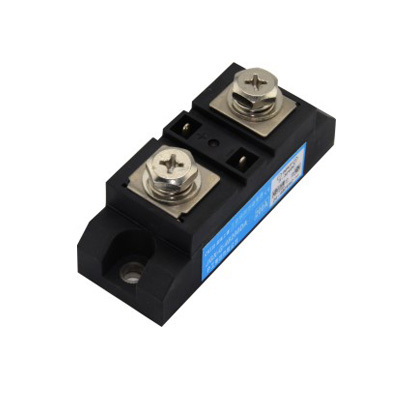

产品图片
|
|
|

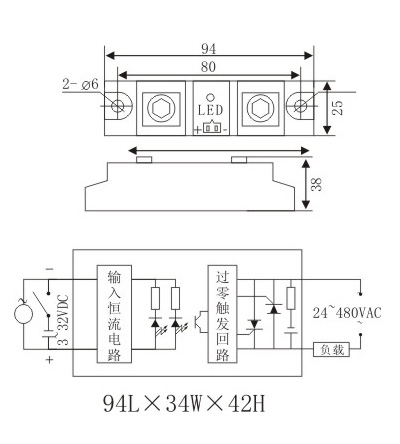

尺寸
|
|
|
负载电流Load Current
|
200A,250A,300A
|
|
负载电压Load Voltage
|
24-480VAC
|
|
控制电压Control Voltage
|
3-32VDC或80-250VAC
|
|
控制电流Control Current
|
DC3-25mA AC≤12mA
|
|
通态压降On Voltage
|
≤1.5V
|
|
通态漏电流 Off Leakage Current
|
≤4mA
|
|
断态时间On-off Time
|
≤10ms
|
|
介质耐压Dielectric Strength
|
2500VAC
|
|
绝缘电阻Insulation Resistance
|
1000MΩ/500VDC
|
|
环境温度Ambient Temperature
|
-30℃~+75℃
|
|
安置方式：Mounting Methods
|
螺栓固定
|
|
工作指示The Work Instructions
|
LED
|
|
重量Weight
|
560g
|
|
