产品信息
|
型号
|
SSR3-□AA-H
|

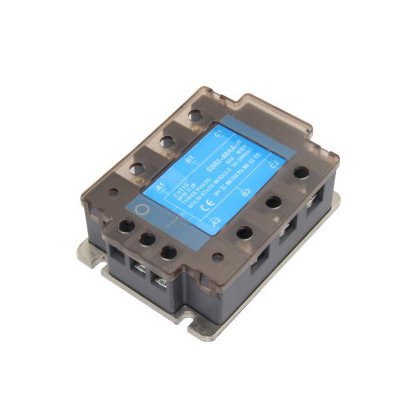

产品图片
|
|
尺寸
|
|
负载电流Load Current
|
10A,25A,40A,60A,75A,90A,100A
|
负载电压Load Voltage
|
24-480VAC
|
控制电压Control Voltage
|
3-32VDC
|
控制电流Control Current
|
DC4-12mA
|
通态压降On Voltage
|
≤1.5V
|
通态漏电流 Off Leakage Current
|
≤4mA
|
断态时间On-off Time
|
≤10ms
|
介质耐压Dielectric Strength
|
2000VAC
|
绝缘电阻Insulation Resistance
|
500MΩ/500VDC
|
环境温度Ambient Temperature
|
-30℃~+75℃
|
安置方式:Mounting Methods
|
螺栓固定
|
工作指示The Work Instructions
|
LED
|
重量Weight
|
135g
|
|
